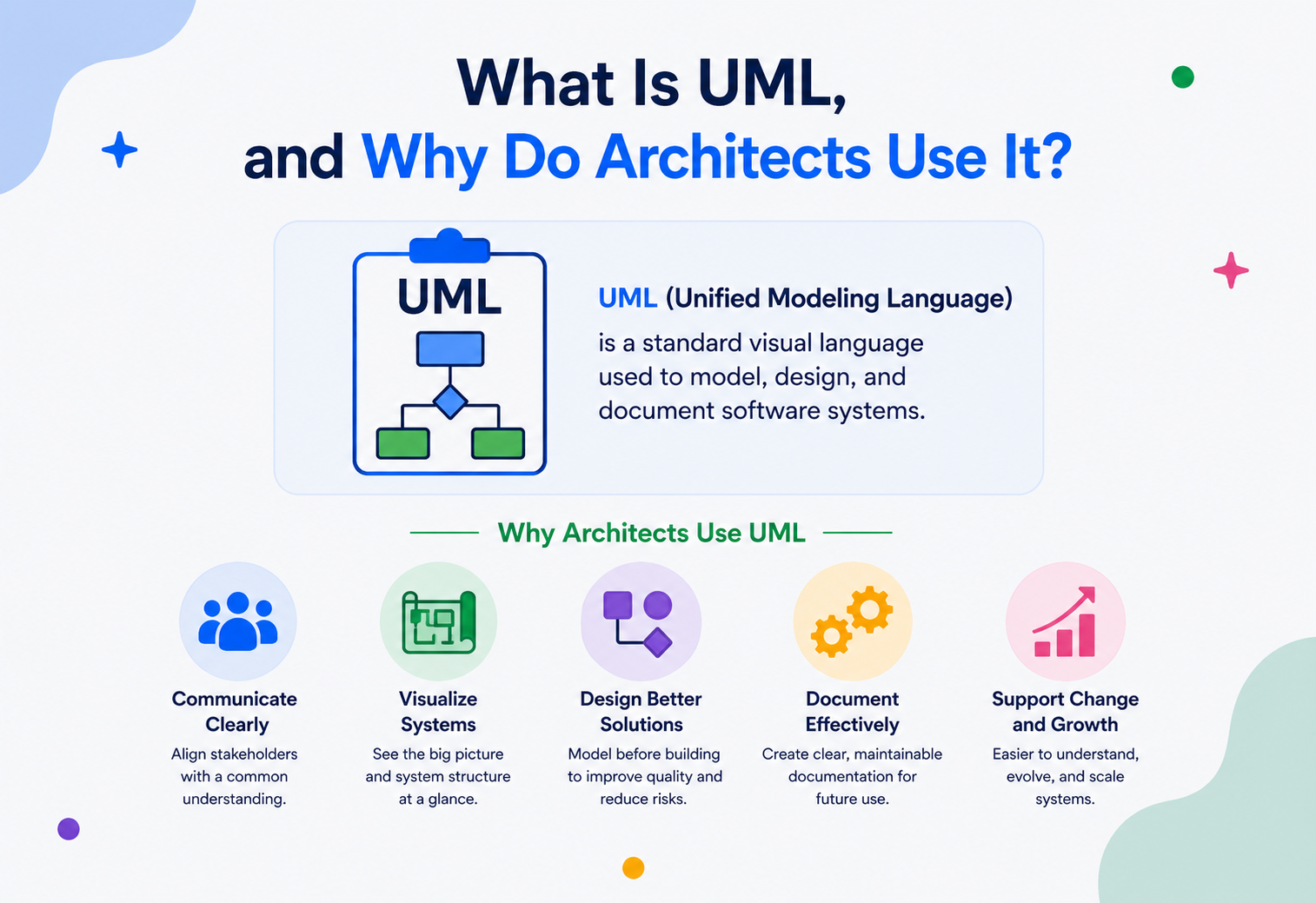

What Is UML, and Why Do Architects Use It?
Long before a single line of code gets written, architects need a way to draw their ideas so other people can actually understand them. UML is the shared drawing language that lets an idea in one person’s head become a picture everyone else can read — precisely enough that a stranger can build from it correctly.
The Big Idea, in One Breath
Why software needs the same thing steel and concrete needed a century ago — a standard set of drawing symbols.
Imagine a group of engineers from five different countries, none of whom share a spoken language, trying to build a bridge together. If each one drew their sketches using their own personal symbols, chaos would follow — one engineer’s triangle might mean “support beam,” while another’s triangle means “danger, avoid.” Nothing would get built safely.
Real-world engineering solved this problem long ago with standardised blueprint symbols — a certain squiggle always means “electrical wire,” a certain shape always means “load-bearing wall,” no matter which country drew it. Software architecture eventually needed the same thing. UML, short for Unified Modeling Language, is that shared set of symbols for software — a way of drawing systems so that any trained architect, anywhere, can look at the picture and understand exactly what it means.
Everyday analogy
Think of sheet music. A musician in Tokyo and a musician in Toronto, who have never met and don’t share a spoken language, can both look at the same sheet of notes and play the identical melody. UML plays that same role for software architects — a shared notation that turns an idea into something precise enough for a stranger to build correctly.
The problem UML solves is really a problem about trust between strangers: how do you convey a design precisely to someone you have never met, in a form they can act on without needing to ask you a hundred clarifying questions? A shared notation is the answer, and UML is the notation the software industry converged on.
What UML Really Is
A visual language, not a programming language — drawn, not compiled.
UML is a standardised visual language for describing the structure and behaviour of a software system — not a programming language itself, but a way of drawing one clearly enough that anyone trained in the notation can understand it. It defines a fixed set of shapes, lines, and symbols, each with one precise meaning, so a diagram means the same thing no matter who drew it.
It was developed in the 1990s and is maintained today by an international standards body (the Object Management Group, or OMG), which is part of why it has remained so widely recognised: it isn’t tied to one company, one programming language, or one particular way of building software.
In plain words
If someone hands you a UML diagram, they’re really saying: “Here’s a precise picture of how this system is structured or behaves — read the shapes carefully, because each one has an exact meaning.”
UML isn’t a single diagram — it’s a whole family of diagram types (currently fourteen in the official specification), each built to answer a different kind of question about a system: what exists, how it’s organised, how it behaves, and how its parts interact over time. Which diagram you reach for depends entirely on the question you’re trying to answer, not on some rigid checklist.
Why Architects Use It
Ideas trapped in one person’s head are fragile — drawings turn them into shared, durable artefacts.
Architects reach for UML for a very human reason: ideas trapped inside one person’s head are fragile. They get misremembered, misunderstood, or lost entirely the moment that person leaves the room. Drawing an idea using a shared, precise notation turns a fragile thought into something durable and shareable.
There’s also a quieter benefit that experienced architects mention often: the act of drawing a UML diagram exposes gaps in your own thinking. It’s remarkably easy to believe a design is finished until you try to draw exactly how two objects will talk to each other — and suddenly realise you haven’t actually decided.
Where It Came From
Before UML, moving between companies often meant learning an entirely new visual vocabulary from scratch.
Before UML existed, the software world faced its own version of that confusing multi-country bridge project. Different teams used different, incompatible notations to draw their designs, and moving between companies often meant learning an entirely new visual vocabulary from scratch.
Competing notations
Throughout the early 1990s, several respected methods for drawing object-oriented designs existed side by side — Booch, Rumbaugh’s OMT, and Jacobson’s OOSE among the most influential — each with its own symbols and rules.
Three voices join together
Grady Booch, James Rumbaugh, and Ivar Jacobson — the “Three Amigos” — working at the same company (Rational Software), began merging their separate approaches into a single, unified notation.
A public standard emerges
Their combined work was submitted to an international standards organisation (the Object Management Group), which refined it into a formally maintained specification. UML 1.1 was adopted as an OMG standard in 1997.
UML 2.x expands the family
The 2005 UML 2.0 major release broadened the specification, formalised extra diagram types, and tightened the meaning of existing symbols so tools could interpret them consistently.
Still evolving today
UML has been revised multiple times since (2.5.1 is the current stable specification), expanding its diagram types while keeping its core, familiar notation largely intact.
That shared origin is exactly why UML caught on so widely — it wasn’t one company’s proprietary invention, but a genuine merger of several respected ideas into one common, freely available standard.
Two Big Families of Diagrams
Almost every UML diagram falls into one of two camps — structure or behaviour.
With more than a dozen official diagram types, UML can feel overwhelming at first glance. It helps enormously to know that almost every one of them falls into just two broad families, each answering a fundamentally different question.
| Question | Structural Diagrams | Behavioural Diagrams |
|---|---|---|
| What do they show? | What exists — the parts and how they connect | What happens — actions, order, and interaction |
| Feels like… | A still photograph of the system | A short video clip of the system in motion |
| Example diagrams | Class, component, deployment, object, package, composite structure, profile | Sequence, use case, activity, state machine, communication, timing, interaction overview |
| Best for answering… | “What are the pieces, and how do they relate?” | “What happens, in what order, when this occurs?” |
Quick way to remember
Structural diagrams are the skeleton. Behavioural diagrams are the movement. A complete picture of a system usually needs a little of both.
The Diagrams Architects Reach For Most
Of the fourteen official types, six do the heavy lifting on real projects.
Of the fourteen official diagram types, a handful cover the overwhelming majority of everyday needs. These are the ones worth knowing well before worrying about the rest.
Class Diagram Structural
Shows the major objects in a system, their properties, and how they relate — the foundation of object-oriented design and by far the most-drawn diagram in practice.
Component Diagram Structural
Shows how a system is broken into larger building blocks (services, modules, libraries), and the dependencies that connect them.
Deployment Diagram Structural
Shows where software actually runs — which servers, containers, devices, or cloud environments each part lives on.
Use Case Diagram Behavioural
Shows who uses a system and what they can do with it, from an outside, everyday point of view — usually one of the first drawings on a project.
Sequence Diagram Behavioural
Shows the exact order in which parts of a system talk to each other while completing one specific task — invaluable when two teams disagree about a flow.
State Machine Diagram Behavioural
Shows the different conditions an object can be in, and what causes it to move from one to another — especially useful for entities with clear lifecycles like orders, tickets, or subscriptions.
Most working architects lean heavily on just three of these — class, sequence, and use case diagrams — reaching for the rest only when a project’s complexity genuinely calls for that extra layer of detail. If you learn only those three well, you can already read and produce most of the UML you will ever encounter in a working codebase.
A Worked Example
Two small diagrams of the same scenario — one snapshot, one video — make the split click immediately.
Descriptions only go so far — seeing two small, original diagrams side by side makes the difference between “structure” and “behaviour” click immediately.
Notice how the class diagram never mentions time or order — it’s a snapshot. The sequence diagram never mentions internal properties — it’s entirely about the flow of messages, numbered in the exact order they occur. Together, the two give a much fuller picture than either could alone.
Real-life analogy
Think of a football play. The class diagram is like the team roster — who’s on the field and what position each plays. The sequence diagram is the play call — who passes to whom, in what order, to actually score. You need both to understand a real match, and neither one is a substitute for the other.
How Architects Actually Use It, Day to Day
Selectively — drawing only the diagrams that answer a real, pressing question.
In practice, UML rarely means drawing every possible diagram for every possible part of a system — that would take far longer than it’s worth. Experienced architects are selective, drawing only the diagrams that answer a real, pressing question.
A class diagram might get sketched during an early design discussion to agree on the major objects before anyone touches a keyboard. A sequence diagram might appear later, when two teams disagree about the exact order two services should talk in. A deployment diagram might only get drawn once, right before a big migration, to make sure everyone agrees on where things will physically run.
UML also shows up heavily during onboarding and documentation, giving new engineers a fast, visual way to understand a system’s shape before diving into thousands of lines of code. A well-chosen class or component diagram, pinned near the top of a project’s README, can save weeks of confused code archaeology for every new team member who joins.
8.1 · Sketch first, formalise later
Most day-to-day UML happens on whiteboards, tablets, or the back of a napkin during live conversations. Only a small subset of those sketches ever gets tidied up into a “proper” UML diagram in a design document — and that’s exactly the right ratio. The value of the diagram is often in the act of drawing it, not in the polished artefact left behind.
Notation and Tools
A small, shared vocabulary of shapes is the whole point — here are the ones you’ll see everywhere.
UML’s power comes from its notation being fixed and precise — a filled diamond always means one specific kind of relationship, an open arrowhead always means another. Learning this small, shared vocabulary is what lets a diagram be understood correctly by someone who never spoke to the person who drew it.
9.1 · A short notation cheatsheet
Association (solid line, open arrow)
“A knows about B and uses it.” The most common connector on class diagrams.
Inheritance (solid line, hollow triangle)
“B is a kind of A.” The triangle always points to the parent class.
Aggregation (hollow diamond)
“A contains B, but B can exist independently.” A library contains books; the books still exist if the library closes.
Composition (filled diamond)
“A owns B, and B cannot exist without A.” A house has rooms; delete the house and the rooms are gone too.
Dependency (dashed line, open arrow)
“A uses B temporarily, but does not hold onto it.” A method parameter, an imported utility, a fleeting reference.
9.2 · Tools you’ll encounter
Purpose-built UML tools Dedicated
Dedicated applications (Enterprise Architect, MagicDraw, StarUML, Visual Paradigm) that provide ready-made UML shapes, keeping diagrams consistent with the official notation.
General diagramming apps Flexible
Broader diagramming tools (Lucidchart, draw.io, Miro) that include UML shape libraries alongside many other diagram styles — less strict, but easier to share with non-engineers.
Text-to-diagram tools Diagrams-as-code
Tools like PlantUML and Mermaid let architects describe a diagram in simple text, which is then automatically rendered as a UML picture — ideal for keeping diagrams in version control alongside the code they describe.
Whiteboard & paper Live
Many of the most useful UML sketches are still drawn quickly by hand during a live discussion, then tidied up later — or discarded once they’ve served their purpose in the conversation.
Whichever tool is used, a shared legend or brief explanation of the notation helps enormously — even trained architects sometimes drift into slightly personal habits, and a quick reminder keeps everyone reading the diagram the same way.
Benefits and Trade-offs
Real value on one side, real cost on the other — and a healthy middle ground in the middle.
UML brings real, well-earned value to architectural work, but it isn’t free of cost, and it isn’t the right tool for every single situation.
Strengths
- Gives teams a precise, shared visual vocabulary that survives across companies, languages, and decades.
- Surfaces design flaws early, before expensive code is written and hard to change.
- Works independently of any single programming language — the same diagram fits Java, Python, C#, or Kotlin.
- Speeds up onboarding by showing structure at a glance rather than forcing new engineers to reconstruct it from source code.
- Backed by an open, stable, freely-available standard — not owned by any single vendor.
Trade-offs
- Learning the full notation takes real, upfront time — especially the less common diagram types.
- Diagrams can quietly go stale if the system changes and they don’t; a wrong diagram is worse than none.
- Drawing every possible diagram for a small project can be overkill and slow the team down.
- Overly rigid use can slow down fast-moving, exploratory work where a rough sketch would communicate better.
- Some modern development styles (TDD, rapid prototyping) prefer working code over up-front diagrams.
The healthiest use of UML treats it as a communication tool, not a mandatory ritual — reached for when a picture will genuinely save time and prevent confusion, not applied out of obligation to every corner of a project.
Rule of thumb
If you cannot name the person or the meeting the diagram is for, you probably don’t need to draw it. UML has an audience or it’s wasted effort.
Common Pitfalls
Three failure modes that turn a helpful tool into a burden — and how to avoid each one.
11.1 · Diagramming everything
Trying to model every class, every method, and every interaction turns UML from a helpful communication tool into an exhausting, rarely-read paperwork exercise. Model only what genuinely needs explaining — the tricky parts, the shared boundaries, the things you want everyone to agree on before code starts.
11.2 · Letting diagrams go stale
A beautiful diagram made at the start of a project, never updated as the system evolves, slowly becomes actively misleading — worse than having no diagram at all. Stale diagrams train readers to distrust all your diagrams, undoing the trust that made them useful in the first place.
11.3 · Inconsistent notation
When team members quietly bend the rules of the notation to their own habits, a diagram stops being universally readable — exactly the problem UML was created to solve in the first place. A filled diamond doesn’t mean “important,” and an open arrowhead doesn’t mean “flows toward.” The rules are the whole point.
Watch out for
Treating a UML diagram as permanent documentation rather than a living aid. Mark diagrams with a date and a version, keep them next to the code they describe (ideally as diagrams-as-code so they get version-controlled and reviewed together), and revisit them whenever the system they describe changes meaningfully.
11.4 · One more failure mode — drawing for the wrong audience
A common quieter mistake is producing an intricate, technically precise diagram for a stakeholder who really just needed a rough business-level view, or the reverse — giving developers a fluffy conceptual sketch when they needed the precise multiplicity and directionality. UML has enough range to serve both audiences; the pitfall is forgetting to pick the right level of detail for the reader in front of you.
Key Takeaways
Six one-line summaries you can carry into your next design conversation.
- UML is a standardised visual language for describing a software system’s structure and behaviour, not a programming language itself.
- It gives architects, developers, and stakeholders a shared, precise notation instead of dozens of personal drawing styles.
- Its diagrams fall into two families: structural (what exists) and behavioural (what happens over time).
- Class, sequence, and use case diagrams cover the majority of everyday architectural needs.
- UML works best used selectively, on the parts of a system that genuinely benefit from a clear picture.
- Like any documentation, UML diagrams only stay useful if they’re kept up to date as the real system changes.
The one idea to remember
UML is the sheet music of software design — a shared, precise notation that lets an idea in one architect’s head become a picture that any trained reader, anywhere, can play back exactly as intended.
