What Is a Component Diagram Used For?
Some systems are too big to draw one class at a time. A component diagram steps back, groups related code into sensible chunks, and shows how those chunks plug into each other — the same way an appliance manual shows plugs and sockets instead of individual wires.
The Big Idea, in One Breath
A TV, a console, a speaker, a streaming box — connected by cables. You never need to know what’s inside each box. That is exactly what a component diagram captures for software.
Picture a home entertainment setup: a television, a game console, a speaker system, and a streaming box, all plugged into each other with cables. You don’t need to know what’s happening inside each box to use the whole system — you just need to know which plug goes into which socket, and what kind of signal travels down each cable.
Software systems work the same way once they grow past a certain size. Instead of one giant tangle of code, well-designed systems are broken into separate, self-contained chunks — each responsible for one job, each exposing a clear “socket” for others to plug into. A component diagram is the picture that shows these chunks and exactly how they connect, without getting lost in the wiring inside each box.
Think about building furniture from modular parts — a shelving system where each unit has standard connectors, so any unit can attach to any other. You don’t need to know how each shelf was manufactured; you just need to know its connectors match. A component diagram shows software the same way: which pieces exist, and which connectors let them snap together.
What a Component Diagram Really Is
A UML view zoomed out from individual code, focused on modular, swappable units and the sockets between them.

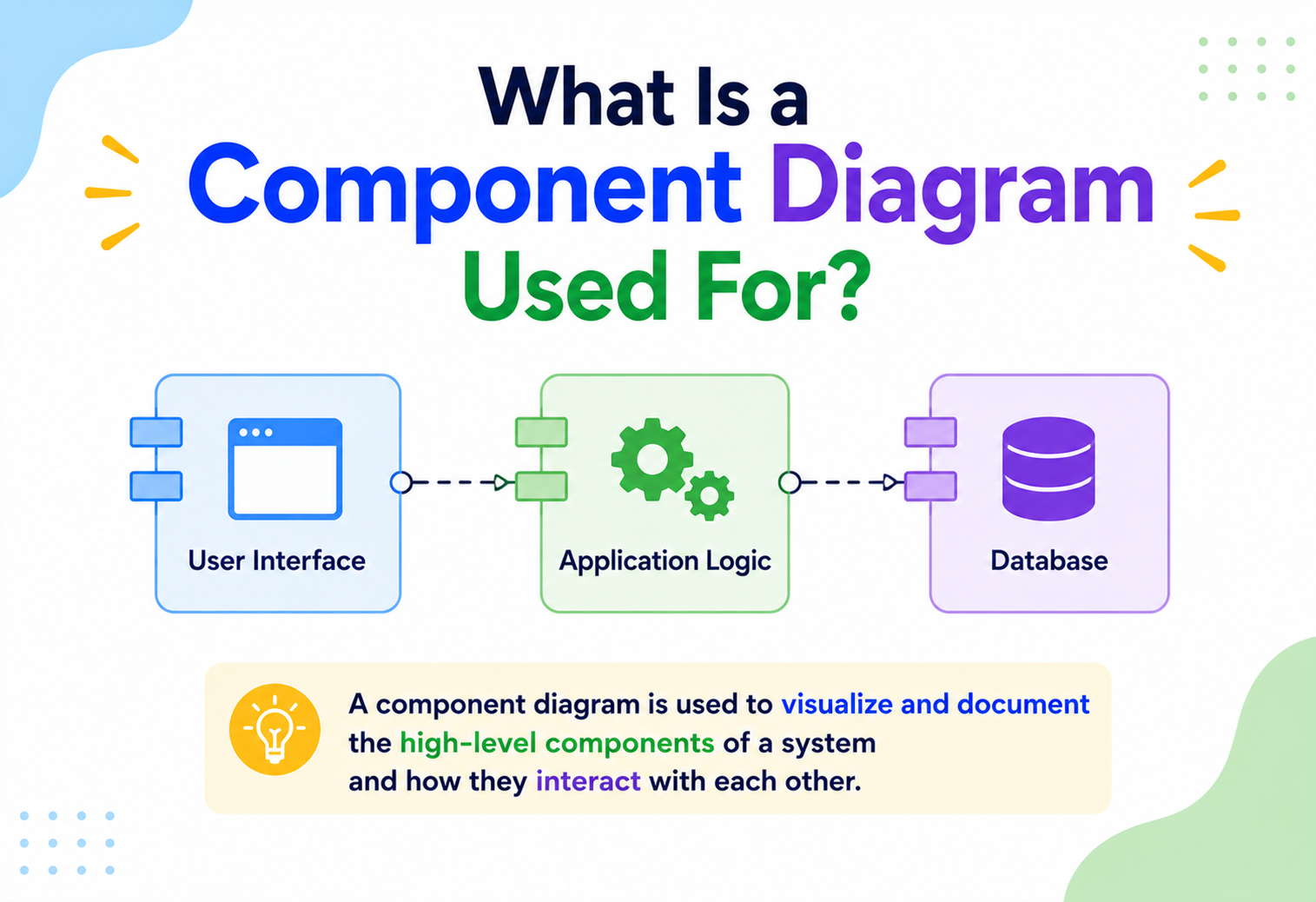

A component diagram is a type of UML diagram that shows a system broken down into larger, self-contained building blocks called components, along with the interfaces and connections that let those components work together. Each component hides its inner workings and exposes only what other components are allowed to see and use.
The key word here is modular. A component diagram deliberately zooms out further than a class diagram — it doesn’t care about individual properties or methods. It cares about bigger, swappable units: a payment module, an authentication module, a search module — the kind of pieces you could replace or upgrade individually without tearing apart the whole system.
If someone asks “what’s the component diagram for this system?”, they are really asking: “What are the major, self-contained pieces of this system, and how do they plug into each other?”
Why Architects Use Them
Reasoning about a huge system at a manageable size. Three quiet reasons component diagrams keep earning their keep across projects and teams.
As systems grow, keeping the whole thing in your head becomes impossible. A component diagram gives architects a way to reason about a large system at a manageable size — thinking in terms of a handful of major pieces instead of thousands of individual files.
They are especially useful the moment a project involves more than one team. If Team A owns the payment component and Team B owns the shipping component, a component diagram becomes the shared map both teams point to when deciding who is responsible for what, and exactly how their pieces should connect.
The Building Blocks
A small vocabulary you can learn once and use for years. Components, provided interfaces, required interfaces, connectors, dependencies — that is really the whole toolbox.
A component diagram is built from a small set of core elements. Once you can recognise these on sight, reading almost any component diagram becomes straightforward.
A rectangle box
Represents one self-contained, replaceable unit of the system — a module, a service, or a subsystem — hiding its internal details.
A small circle (“lollipop”)
Shows a service a component offers to others — what it is willing to do on request.
A half-circle (“socket”)
Shows a service a component needs from somewhere else in order to function properly.
A line joining pieces
Represents an actual link — a lollipop plugged into a matching socket, showing two components are wired together.
A fifth element, the dependency, shown as a dashed arrow, captures a looser relationship — one component simply relying on another existing and working correctly, without a formally defined plug-and-socket connection.
Reading the Symbols
Playful nicknames, precise meanings. Lollipops offer, sockets need, lines say they meet. Dashed arrows say “I quietly depend on you.”
The visual notation of a component diagram is deliberately playful in nickname but precise in meaning — the “lollipop and socket” style is one of the most recognisable pieces of UML shorthand.
| Symbol | Meaning | Everyday Equivalent |
|---|---|---|
| Circle on a stick (“lollipop”) | A provided interface — what this component offers | An electrical outlet on the wall |
| Half-circle (“socket”) | A required interface — what this component needs | The plug on the end of an appliance’s cord |
| Solid connecting line | An assembly connector — the plug meeting the socket | The cord actually plugged into the wall |
| Dashed arrow | A dependency — one component relies on another | Needing electricity in the building, generally, to work at all |
Lollipop = “I offer this.” Socket = “I need this.” A connecting line simply shows the two actually meeting up.
A Worked Example
A small slice of an online store — three components, two interfaces — showing exactly how the notation earns its keep in a real design.
Here is a small, original example showing part of an online store, broken into three components and the interfaces connecting them.
Notice that nothing here describes what happens inside the Payment component, or which programming language it is written in. That’s the whole point — a component diagram deliberately hides implementation, focusing purely on the pieces and their connection points.
Component Diagrams vs. Other UML Diagrams
Zoom out from class diagrams, zoom in from deployment diagrams. Knowing where the component diagram sits keeps you from picking the wrong lens for the job.
Component diagrams sit at a specific zoom level, and it helps to see exactly where they fit compared to their closest relatives.
| Question | Class Diagram | Component Diagram | Deployment Diagram |
|---|---|---|---|
| Shows what? | Individual objects and their properties | Larger, self-contained modules and their interfaces | Where software physically runs |
| Zoom level | Closest — inside a single object | Mid-range — groups of related code | Furthest — servers and hardware |
| Cares about code details? | Yes, in detail | No — hides internal implementation | No — cares about physical location |
Class diagrams zoom into the bricks. Component diagrams step back to show the walls. Deployment diagrams step back further still to show which building each wall sits in.
How to Draw One, Step by Step
Work outside-in. Five small steps — identify, name, mark what is offered, mark what is needed, connect — produce a diagram that actually communicates.
Creating a useful component diagram is a matter of working from the outside in, rather than trying to capture every detail at once.
Identify the Major Pieces
List the big, self-contained chunks of the system — modules a team could realistically own and change independently.
Name Each Component Clearly
Give each piece a short, descriptive name that says what it does, not how it is built internally.
Mark What Each One Offers
Add a lollipop for every service a component provides to the rest of the system.
Mark What Each One Needs
Add a socket for every service a component depends on from somewhere else.
Connect Matching Pairs
Draw a line wherever a socket genuinely lines up with another component’s lollipop, showing the real wiring of the system.
Where They Really Shine
Four situations where a component diagram consistently earns its keep — and a note about the kinds of questions it isn’t the right tool for.
Component diagrams earn their keep in specific, recurring situations across modern software work.
Mapping service boundaries
Shows which independent services exist and exactly how they are meant to talk to one another.
Understanding old systems
Helps teams map an existing, poorly documented system before attempting to safely change or replace parts of it.
Planning external connections
Clarifies exactly what an outside vendor’s system provides, and what your own system must supply in return.
Dividing ownership
Gives a large project a shared map for deciding which team owns which piece, and where the boundaries lie.
They are less suited to explaining fine-grained logic or step-by-step behaviour — for that kind of detail, a sequence or class diagram usually does a better job.
Benefits and Trade-offs
A map of intent, not a substitute for reading the code. Component diagrams do certain jobs beautifully and other jobs poorly — the trick is knowing which is which.
Like every UML diagram, component diagrams do certain jobs very well and other jobs poorly — knowing the difference keeps them genuinely useful.
Strengths
- Makes a large system’s shape understandable at a glance
- Highlights tight coupling and messy dependencies early
- Supports clean team boundaries around clear ownership
- Works well for both new designs and mapping existing systems
Trade-offs
- Hides detail that some readers may actually need
- Can oversimplify systems that don’t split cleanly into modules
- Needs updating whenever real component boundaries shift
- Less useful for small, simple systems with little structure to show
The healthiest approach treats a component diagram as a map of intent — useful for orientation and planning, but not a substitute for reading the actual code when fine detail truly matters.
Common Pitfalls
Three recurring traps — wrong zoom, imaginary interfaces, and too many boxes — each quietly turning a useful diagram into a distracting one.
Drawing at the Wrong Zoom Level
Squeezing individual classes and methods into a component diagram defeats its purpose. If a diagram starts looking like a class diagram, it is probably drawn one level too deep.
Interfaces That Don’t Really Exist
Drawing a clean lollipop-and-socket connection that doesn’t match how the components actually communicate in the real code creates a diagram that quietly lies to its readers.
Too Many Components, Too Little Structure
Breaking a system into dozens of tiny components defeats the purpose of stepping back — the diagram becomes just as cluttered as the code it was meant to simplify.
A component diagram that was accurate on day one but never revisited. As real boundaries shift during development, an unrevised diagram slowly becomes fiction rather than documentation.
Key Takeaways
If you remember only these six ideas from the whole guide, you’ll be able to read, sketch, and honestly critique almost any component diagram you meet.
Remember This
- Modular map. A component diagram shows a system broken into large, self-contained modules and the interfaces connecting them.
- Small vocabulary. Its core notation — components, provided interfaces, required interfaces, and connectors — is deliberately simple.
- Lollipops and sockets. The style shows exactly what each piece offers and what it needs from others.
- Mid-range zoom. It sits between the class diagram (closer) and the deployment diagram (further out).
- Best-fit situations. Especially valuable for microservices, legacy modernisation, third-party integration, and team planning.
- Keep it honest. Like any diagram, it stays useful only as long as it is kept honest and updated alongside the real system.
