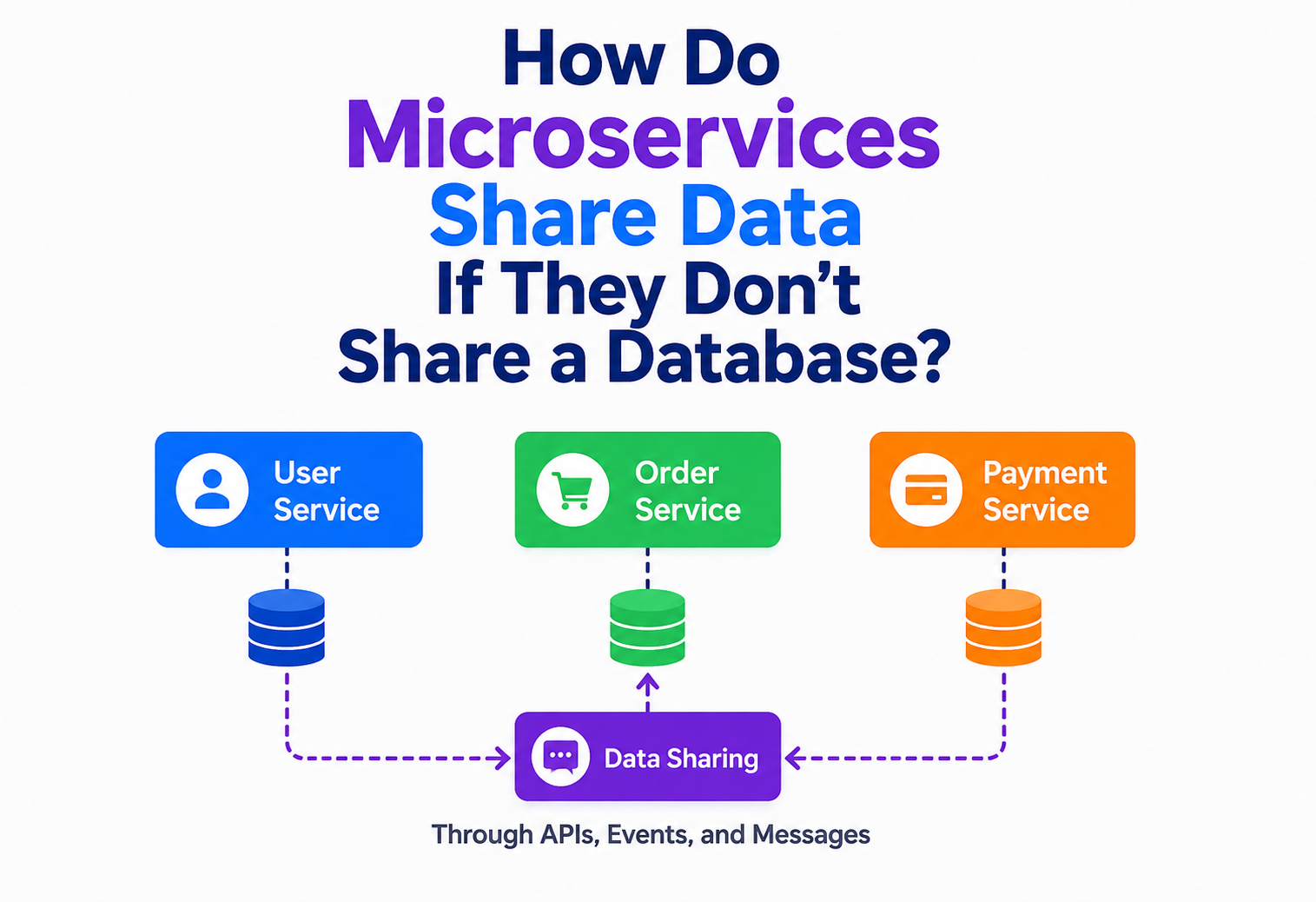

Why the modern industry decided that microservices must not share a database — and what that immediately forces us to solve.

Imagine a school with many classrooms. Each classroom has its own teacher, its own attendance register, and its own set of rules. The Math teacher doesn’t walk into the Science classroom and rewrite the Science attendance register. If the Math teacher needs to know something about a student’s Science marks, they ask the Science teacher — they don’t reach into the Science teacher’s private notebook.

This is exactly the situation modern software systems find themselves in. A single big application used to be like one giant classroom where every teacher shared one notebook. That was simple, but it caused chaos when the school grew to thousands of students. So schools split into departments. Software did the same thing — it split into microservices.

Each microservice is a small, independent piece of software that owns one job and one private database. No other service is allowed to touch that database directly. This is called the Database-per-Service pattern, and it is the foundation of everything you will learn in this tutorial.

But this immediately creates a very real, very practical question — the one this entire tutorial is built to answer:

By the end of this tutorial, you will understand every major answer to that question — from simple API calls, to event-driven messaging, to advanced patterns like Sagas, CQRS, Event Sourcing, and Change Data Capture — with diagrams, Java code, and real production examples from companies like Netflix, Amazon, and Uber.

1.1 A short history: why we ended up here

In the early 2000s, most companies built monoliths — one large application, one large shared database. It was simple to build and simple to query, because every table sat right next to every other table. You could write one SQL join and get any answer you wanted.

But as companies like Amazon and Netflix grew from thousands to hundreds of millions of users, the monolith became a bottleneck. One small bug in the “reviews” module could crash the entire website, including checkout. One team’s database migration could block every other team. Deploying a one-line fix meant redeploying the entire application, tested by hundreds of engineers who all touched the same codebase.

Amazon famously moved to a “two-pizza team” model around the mid-2000s: small, independent teams, each owning a small service and its own data. Netflix followed with a large-scale migration to microservices between 2009 and 2012, forced partly by a major database corruption incident that made them rethink single points of failure. This is where the modern microservices movement, and the data-sharing problem we’re solving today, really took shape.

Why we deliberately gave up the convenience of one shared database — and what “sharing data” actually means in a microservices world.

2.1 Why not just share one database?

It seems easier, right? One database, every service reads and writes to it, no need for all these fancy patterns. This is exactly what early distributed systems tried — and exactly what caused serious pain. Let’s understand why with a simple, real-life analogy.

Here are the concrete engineering problems a shared database creates:

• Tight coupling: If the Inventory team changes a column name, the Order service, the Shipping service, and the Analytics service might all break at the same time, even though nobody told them.
• No independent deployment: You can’t safely deploy Inventory changes without coordinating with every other team that touches the same tables.
• No independent scaling: If the Payments table is under heavy load, the whole database — including tables used by unrelated services — slows down.
• Single point of failure: One giant database going down takes every service down with it.
• Technology lock-in: Every service is forced to use the same database engine, even if a different service would work better with a different one (e.g., a graph database for a recommendation engine vs. a relational database for orders).
• Unclear ownership: When ten teams can write to the same table, nobody truly owns the data’s correctness.

So the industry made a trade: give up the convenience of “just JOIN the tables” in exchange for independence, resilience, and the ability to scale teams and systems separately. That trade is the entire reason this tutorial exists — because giving up shared databases means we now need new ways to move data between services.

2.2 What “sharing data” actually means

When we say microservices need to “share data,” we usually mean one of three things:

1. Querying: Service A needs a piece of information that lives in Service B’s database right now (e.g., “what is this product’s current price?”).
2. Reacting: Service A needs to know when something changes in Service B (e.g., “tell me the moment an order is placed”).
3. Coordinating: Multiple services need to agree on a multi-step business process that spans all of them (e.g., “reserve stock, charge the card, and schedule shipping — and if any step fails, undo the previous ones”).

Each of these three needs is solved by a different family of patterns, which is exactly how this tutorial is organized.

The vocabulary you need before anything else makes sense. Read this section slowly — every later section leans on it.

3.1 Database-per-Service

What it is: Every microservice owns exactly one database (or schema), and no other service is allowed to access it directly — not even to read.

Why it exists: It enforces a hard boundary so services can change their internal data model freely without breaking others.

Simple analogy: Each department in a company has its own locked filing cabinet. If HR wants a Finance document, they call Finance and ask for a copy — they don’t pick the lock.

3.2 Bounded Context

What it is: A concept from Domain-Driven Design (DDD) describing the boundary within which a particular business model and its terms have one consistent meaning. Inside the “Orders” bounded context, a “Customer” might just be a name and shipping address. Inside the “Support” bounded context, a “Customer” might include ticket history and satisfaction scores. Same word, different meaning, different service.

Why it exists: It stops teams from trying to build one giant “Customer” object that tries to satisfy every team at once, which always ends up bloated and fragile.

Practical example: Amazon’s Order service doesn’t need to know a customer’s browsing history — that belongs to the Recommendations service’s bounded context.

3.3 Coupling vs. Autonomy

What it is: Coupling measures how much one service depends on the internal details of another. Autonomy measures how independently a service can be built, deployed, and scaled.

Why it exists: The entire point of microservices is to trade some convenience for high autonomy and low coupling. Every data-sharing pattern in this tutorial is really just a different way of managing this trade-off.

3.4 Consistency: Strong vs. Eventual

Strong consistency means that the moment data is written, every subsequent read sees that exact value — like a single shared bank ledger where everyone sees the same balance instantly.

Eventual consistency means that after a write, it may take a short time (milliseconds to seconds, sometimes longer) before every part of the system reflects the new value — but it is guaranteed to get there eventually, assuming no permanent failures.

Most microservice data-sharing patterns embrace eventual consistency because demanding strong consistency across independent databases is slow, fragile, and sometimes provably impossible at the same time as availability (see the CAP Theorem section later).

3.5 Idempotency

What it is: An operation is idempotent if doing it once, or doing it five times by accident, produces the same result.

Why it exists: In distributed systems, messages can be delivered more than once due to retries and network failures. If “charge the customer $50” isn’t idempotent, a retried message could charge them $250.

Practical example: Instead of “add $50 to balance” (not idempotent), design it as “set balance after transaction #4471 to $450” (idempotent) or track processed transaction IDs and skip duplicates.

The big picture before we zoom into individual patterns.

Before diving into individual patterns, let’s see the whole picture. Below is a simplified e-commerce system with several services, each owning its own database, connected by both direct API calls and an event bus.

Notice two very different communication styles in this diagram:

• A direct REST call from Order to Inventory (synchronous) — used when the caller cannot proceed until it gets a fresh answer.
• An event published to a bus that Payment, Shipping, and Notification all react to independently (asynchronous) — used when the caller only needs to announce that something happened, and doesn’t care who listens.

These are the two fundamental building blocks that every other pattern in this tutorial is built from.

The simplest pattern — and the easiest to get wrong at scale.

What it is: One service directly calls another service’s API (usually REST or gRPC) and waits for a response before continuing.

Why it exists: Sometimes you need an immediate, up-to-date answer right now — you cannot proceed without it. “Is this item in stock?” needs an answer before you can confirm an order.

Where it’s used: Read-heavy, real-time lookups; simple point-to-point queries; systems where a small amount of added latency is acceptable.

5.1 How it works, step by step

1. Order receives a request

   The Order service receives a request to place an order.

2. Order calls Inventory

   It calls GET /inventory/{productId}/stock on the Inventory service.

3. Order blocks and waits

   It waits (blocks) for the HTTP response — nothing else happens on this thread meanwhile.

4. Inventory answers from its own DB

   Inventory service reads its own local database and replies with the stock count.

5. Order decides

   Order service uses that answer to decide whether to proceed.

Java example — a simple synchronous client call

// Order Service calling Inventory Service synchronously using RestTemplate
@Service
public class InventoryClient {

    private final RestTemplate restTemplate;
    private final String inventoryServiceUrl = "http://inventory-service/api/stock/";

    public InventoryClient(RestTemplate restTemplate) {
        this.restTemplate = restTemplate;
    }

    public boolean isInStock(String productId, int quantity) {
        StockResponse response = restTemplate.getForObject(
            inventoryServiceUrl + productId, StockResponse.class);
        return response != null && response.getAvailableQuantity() >= quantity;
    }
}

This snippet blocks the calling thread until Inventory responds. That’s simple to reason about, but it means if Inventory is slow, Order becomes slow too.

5.2 The hidden danger: cascading failures

If Inventory service goes down or becomes slow, every service that calls it synchronously starts piling up waiting threads. This can spread like a chain reaction and take down the whole system — a phenomenon engineers call a cascading failure.

5.3 Protecting synchronous calls: timeouts, retries, and circuit breakers

Production systems never call another service “naked.” They wrap the call with safety nets:

• Timeouts: Don’t wait forever — give up after, say, 500ms.
• Retries with backoff: Try again a few times, waiting a little longer each time, in case it was a temporary blip.
• Circuit breaker: If a downstream service keeps failing, stop calling it for a while and fail fast, giving it time to recover — just like an electrical circuit breaker trips to stop a surge from destroying your whole house wiring.

Java example — circuit breaker with Resilience4j

// Circuit breaker example using Resilience4j
@CircuitBreaker(name = "inventoryService", fallbackMethod = "fallbackStock")
public StockResponse getStock(String productId) {
    return restTemplate.getForObject(
        "http://inventory-service/api/stock/" + productId, StockResponse.class);
}

public StockResponse fallbackStock(String productId, Throwable t) {
    // Return a safe default instead of failing the whole order flow
    return new StockResponse(productId, 0, "UNKNOWN - please verify manually");
}

Announce a fact once and let anyone who cares listen — no waiting, no direct coupling.

What it is: Instead of directly calling another service and waiting, a service publishes a small message called an event — a fact that something happened — onto a message broker (like Kafka or RabbitMQ). Other services subscribe to events they care about and react whenever they arrive.

Why it exists: It removes the need to wait. The publisher doesn’t even need to know who is listening. This dramatically reduces coupling and improves resilience — if a subscriber is temporarily down, the event just waits in the queue until it comes back.

6.1 Key vocabulary

6.2 Step-by-step data flow

Java example — publishing an event with Spring Kafka

@Service
public class OrderEventPublisher {

    private final KafkaTemplate<String, OrderPlacedEvent> kafkaTemplate;

    public OrderEventPublisher(KafkaTemplate<String, OrderPlacedEvent> kafkaTemplate) {
        this.kafkaTemplate = kafkaTemplate;
    }

    public void publishOrderPlaced(Order order) {
        OrderPlacedEvent event = new OrderPlacedEvent(
            order.getId(), order.getCustomerId(), order.getTotalAmount());
        kafkaTemplate.send("order-events", order.getId(), event);
    }
}

Java example — consuming the event in Payment Service

@Component
public class OrderEventListener {

    private final PaymentService paymentService;

    public OrderEventListener(PaymentService paymentService) {
        this.paymentService = paymentService;
    }

    @KafkaListener(topics = "order-events", groupId = "payment-service")
    public void onOrderPlaced(OrderPlacedEvent event) {
        // Idempotency check prevents double-charging on redelivery
        if (paymentService.alreadyProcessed(event.getOrderId())) {
            return;
        }
        paymentService.chargeCustomer(
            event.getCustomerId(), event.getTotalAmount(), event.getOrderId());
    }
}

6.3 Two flavors of events

• Notification events (thin events): “OrderPlaced with ID 4471” — just enough to identify what happened. The consumer calls back via API for details if needed.
• Event-carried state transfer (fat events): The event carries the full data needed, e.g. the entire order payload, so consumers don’t need to call back at all. This reduces coupling further but makes events larger and versioning harder.

What replaces a cross-database ACID transaction once every service has its own private database.

What it is: A Saga is a sequence of local transactions across multiple services, where each service updates its own database and publishes an event to trigger the next step. If any step fails, a series of compensating actions undo the previous steps.

Why it exists: In a monolith, a multi-step business process (reserve stock → charge card → schedule shipping) could be wrapped in one ACID database transaction. Across microservices with separate databases, you cannot do that — there is no single transaction that spans multiple databases safely at scale. Sagas are the accepted replacement.

7.1 Two ways to coordinate a Saga

7.2 Choreography example: Order → Payment → Shipping

7.3 Orchestration example

Java example — a simplified saga orchestrator

@Service
public class OrderSagaOrchestrator {

    public void executeOrderSaga(Order order) {
        boolean stockReserved = false;
        boolean paymentCharged = false;
        try {
            inventoryClient.reserveStock(order.getItems());
            stockReserved = true;

            paymentClient.chargeCustomer(order.getCustomerId(), order.getTotalAmount());
            paymentCharged = true;

            shippingClient.scheduleShipment(order.getId(), order.getAddress());

            orderRepository.markConfirmed(order.getId());
        } catch (Exception ex) {
            // Compensating actions run in reverse order
            if (paymentCharged) {
                paymentClient.refund(order.getCustomerId(), order.getTotalAmount());
            }
            if (stockReserved) {
                inventoryClient.releaseStock(order.getItems());
            }
            orderRepository.markFailed(order.getId(), ex.getMessage());
        }
    }
}

Assemble the read view ahead of time, so queries never have to fan out live across services.

What it is: CQRS splits the model used to write data (commands) from the model used to read data (queries). In a microservices data-sharing context, this often means: each service publishes events when its data changes, and a separate “read model” service subscribes to those events and builds a fast, denormalized copy of the data optimized purely for querying — often combining data from multiple services.

Why it exists: Without CQRS, answering a question like “show me this customer’s order history, current loyalty points, and shipping status, all on one screen” would require the UI to call three or four different services synchronously and stitch the results together on every single request — slow and fragile. CQRS solves this by pre-building the combined view ahead of time.

8.1 How it works, step by step

1. Order writes and emits

   Order service updates its database (write model) and publishes an OrderUpdated event.

2. Shipping writes and emits

   Shipping service updates its database and publishes a ShipmentStatusChanged event.

3. Read Model Builder listens

   A dedicated “Customer Dashboard” read-model service subscribes to both events.

4. It writes a denormalized doc

   It writes a single denormalized document per customer into a fast store (often a document database or a cache like Redis or Elasticsearch), containing everything needed for the dashboard screen.

5. The UI queries only that store

   The UI queries this one read-optimized store directly — no fan-out calls to four services on every page load.

8.2 Trade-offs

Instead of storing only the current state, store every change that led to it.

What it is: Instead of storing only the current state of an entity (e.g. “order status = SHIPPED”), Event Sourcing stores the full sequence of events that led to that state (OrderCreated → PaymentReceived → OrderShipped). The current state is calculated by replaying all events in order.

Why it exists: It gives you a perfect, permanent audit trail, and it pairs naturally with event-driven microservices — since the events you already publish to other services can also serve as your own source of truth.

9.1 Practical example

Current state (“SHIPPED”, tracking number X) is derived by replaying these three events. Other services that need the current state can subscribe to the same event stream and build their own local read models — which is exactly how Event Sourcing and CQRS often work together in the same system.

Turn a database’s own transaction log into an event stream — without changing a single line of application code.

What it is: CDC is a technique where a tool watches a service’s database transaction log (the same internal log the database uses for its own crash recovery) and automatically turns every insert, update, and delete into a stream of events — without the application code having to manually publish anything.

Why it exists: Sometimes you’re dealing with an existing service (maybe even a legacy one) whose code you don’t want to modify to add manual event publishing. CDC lets you get reliable events “for free” straight from the database itself. The most popular open-source tool for this is Debezium, usually paired with Kafka.

Production example: Companies with large legacy estates (banks, airlines, big retailers) often use CDC to gradually connect old monolithic databases into a modern event-driven ecosystem without rewriting the legacy application first.

The single most important safety pattern in event-driven microservices — the one that keeps your database and your event stream from ever silently disagreeing.

There is a subtle but very common bug hiding in the event-driven examples we’ve seen so far. Consider this code:

@Transactional
public void placeOrder(Order order) {
    orderRepository.save(order);          // Write 1: database
    kafkaTemplate.send("order-events", order.getId(), new OrderPlacedEvent(order)); // Write 2: message broker
}

This looks fine, but it writes to two different systems — the database and the message broker — and there is no way to guarantee both succeed or both fail together. If the service crashes right after the database commit but before the Kafka send, the order exists in the database but the event is lost forever. Other services never learn the order was placed. This is called the dual-write problem.

The solution — the Outbox Pattern: Instead of publishing the event directly, write the event into a special “outbox” table in the same database, same local transaction as your actual business data. A separate background process (or a CDC tool like Debezium) reads new rows from the outbox table and reliably publishes them to Kafka, then marks them as sent.

Java example — writing to the outbox in the same transaction

@Transactional
public void placeOrder(Order order) {
    orderRepository.save(order);

    OutboxEvent event = new OutboxEvent(
        UUID.randomUUID(),
        "Order",
        order.getId(),
        "OrderPlaced",
        toJson(order),
        Instant.now()
    );
    outboxRepository.save(event); // same transaction, same database
}

Because both orderRepository.save() and outboxRepository.save() run inside the same @Transactional boundary against the same database, they either both commit or both roll back together — no lost events, no phantom events.

A minimum mental model of what happens inside Kafka (or a similar broker) — enough to reason about failure, ordering, and scaling instead of treating the broker as a magic box.

To use event-driven patterns confidently in production, you need a basic mental model of what happens inside the broker.

12.1 Partitions and ordering

Kafka splits a topic into partitions. Events with the same key (e.g. the same orderId) always go to the same partition, and Kafka guarantees strict ordering within a partition — but not across the whole topic. This is why choosing a good partition key matters: if you need all events for one order processed in the order they happened, key by orderId.

12.2 Delivery guarantees

Most real systems choose at-least-once delivery combined with idempotent consumers — it’s simpler and cheaper than true exactly-once, and just as safe when done correctly.

12.3 Consumer groups

Multiple instances of the same service (say, three replicas of Payment Service) join the same consumer group. Kafka automatically splits the topic’s partitions across them, so each event is processed by only one instance — giving you both parallel processing and no duplicate work within the group.

The fundamental trade-off that explains why almost every pattern in this tutorial embraces eventual consistency.

The CAP Theorem, formalized by Eric Brewer, states that a distributed data system can only fully guarantee two out of these three properties at the same time, during a network failure:

• Consistency (C): Every read sees the latest write.
• Availability (A): Every request gets a response, even if it might not be the latest data.
• Partition Tolerance (P): The system keeps working even if network communication between nodes breaks down.

Because real networks do fail sometimes, Partition Tolerance is essentially non-negotiable for any distributed system — so in practice, the real choice during a network partition is between Consistency and Availability.

Microservices data-sharing patterns almost always lean toward AP (Availability + eventual Consistency) because a slightly stale read is usually far less damaging to the business than the entire system refusing to respond. This is exactly why Sagas, CQRS, and event-driven messaging all embrace eventual consistency rather than trying to force strong consistency across service boundaries.

The elegant, well-studied pieces of computer science quietly running underneath every broker, cache, and sharded database in the diagrams above.

The patterns above rely on some elegant, well-studied algorithms and data structures working quietly underneath. Understanding them helps you reason about failure modes instead of treating message brokers as magic boxes.

14.1 Consistent hashing

What it is: A hashing technique used to decide which node (or partition) owns a given piece of data, designed so that adding or removing a node only reshuffles a small fraction of the data instead of almost everything.

Why it exists: With plain hashing (hash(key) % numberOfNodes), adding a single new node changes the result of the modulo for nearly every key, forcing a massive, expensive data reshuffle. Consistent hashing arranges nodes and keys on a conceptual circle (“hash ring”), so each key only cares about its nearest neighbor on the ring — adding a node only affects the small slice of keys near it.

Where it’s used: Kafka partition assignment, distributed caches like Redis Cluster and Memcached, and sharded databases like Cassandra and DynamoDB all lean on consistent hashing (or close variants) to spread data evenly while minimizing reshuffling when the cluster grows or shrinks.

14.2 Vector clocks and logical ordering

What it is: A small data structure — essentially a counter per node — attached to each update, used to detect whether one event happened before another, or whether two events happened independently (“concurrently”) without any real-world server clock being perfectly synchronized.

Why it exists: In a distributed system, physical clocks on different machines are never perfectly in sync, so you cannot reliably say “this update happened first” just by comparing timestamps. Vector clocks (and simpler cousins like Lamport timestamps) give a logical, clock-independent way to order events causally.

Practical example: If two services update the same customer record while briefly disconnected from each other, a vector clock lets the system detect this was a genuine conflict (concurrent, unordered writes) rather than incorrectly assuming one simply happened after the other.

14.3 Idempotency keys and deduplication with hash sets / Bloom filters

We already discussed why consumers must be idempotent. In practice this is usually implemented with a simple data structure: a table or in-memory set that stores the unique ID of every event already processed. Before processing a new event, the consumer checks the set — if the ID is already present, it skips reprocessing.

At very high volumes, checking a full database table for every single event can be slow, so some systems use a Bloom filter — a compact, probabilistic data structure that can quickly tell you “this ID has definitely not been seen before” or “this ID has probably been seen before” using a small, fixed amount of memory, with a tunable, very small false-positive rate. It’s a fast first check before falling back to the authoritative database lookup only when needed.

14.4 Concurrency control: optimistic vs. pessimistic locking

Within a single service’s own database, concurrent updates to the same row are still a real concern even though the whole point of microservices is to avoid cross-service locking.

• Pessimistic locking: Lock the row before reading it, forcing other transactions to wait. Safe, but can hurt throughput under high contention.
• Optimistic locking: Read the row along with a version number; when writing, check the version hasn’t changed, and reject (retry) the write if it has. This scales much better when conflicts are rare, which is the common case in most business applications.

// Optimistic locking with a version column (JPA / Hibernate)
@Entity
public class Order {
    @Id
    private String id;

    @Version
    private long version; // Hibernate auto-checks this on update

    private String status;
    // ...
}

If two threads load the same order and both try to update its status, the second write fails because the version number no longer matches, and the application can safely retry with fresh data instead of silently overwriting the first change.

14.5 Consensus: Raft in a little more depth

Earlier we mentioned that Raft is used to elect a leader and agree on state across nodes. Its core idea is refreshingly simple: nodes hold periodic elections, a candidate becomes leader only if it wins votes from a strict majority, and once elected, only that leader accepts new writes and replicates them to followers. If the leader disappears (crashes, network partition), a new election happens automatically after a short timeout. This majority-vote requirement is exactly what prevents two leaders from operating at once (a “split-brain” scenario), which would otherwise let two parts of the system accept conflicting writes simultaneously.

Every pattern earns its place through a specific trade-off. Read this whole table before you pick one for a real project.

There is no single “best” pattern — production systems typically combine several of these depending on the specific need of each interaction.

Why the whole architecture is worth the trouble — independent scaling and back-pressure absorption.

Decoupled data sharing directly enables independent scaling — arguably the biggest performance win of the whole architecture.

• Horizontal scaling per service: If Payment Service is under heavy load on Black Friday, you scale only Payment Service’s pods, without touching Inventory or Shipping.
• Read replicas: A service can add read-only replicas of its own database to spread out query load, completely invisible to other services.
• Backpressure via queues: A message broker naturally smooths out traffic spikes — events queue up during a burst and get processed steadily, instead of overwhelming a downstream service in real time.
• Batching: Consumers can process events in small batches (e.g. 500 at a time) to improve throughput at the cost of a little added latency.

How the same architecture keeps standing when disks fail, brokers die, and networks split.

17.1 Replication

Each service’s database is typically replicated across multiple nodes (one primary, several replicas). If the primary fails, a replica is promoted, minimizing downtime. Message brokers like Kafka replicate each partition across multiple brokers too, so losing one broker doesn’t lose data.

17.2 Partitioning (Sharding)

As a service’s data grows huge, its database can be split (sharded) across multiple machines by a key, such as customerId. This is a separate concept from Kafka “partitions” but shares the same core idea: split data by key to spread load.

17.3 Consensus algorithms

Distributed databases and brokers need to agree on things like “who is the current primary” even when some nodes are unreachable. Algorithms like Raft and Paxos solve this by requiring a majority (“quorum”) of nodes to agree before any decision is finalized, which prevents split-brain scenarios where two nodes both think they’re in charge.

17.4 Failure recovery patterns

• Dead-letter queues: Events that repeatedly fail to process get moved to a separate queue for manual inspection, instead of blocking the whole pipeline forever.
• Retry with exponential backoff: Wait 1s, then 2s, then 4s, then 8s between retries, so a struggling downstream service isn’t hammered.
• Bulkheads: Isolate thread pools and connections per downstream dependency, so one slow dependency can’t exhaust all your resources — like separate watertight compartments in a ship’s hull.

How sensitive data stays safe as it moves between many independent services and a shared broker.

• Service-to-service authentication: Services authenticate each other using mutual TLS (mTLS) or short-lived JWT tokens, not shared passwords, so a compromised service can’t freely impersonate another.
• Least-privilege data access: A service should only ever receive the specific fields it needs in an event or API response — not a full dump of another service’s database record.
• Broker-level access control: Kafka and RabbitMQ support ACLs so only authorized services can publish or subscribe to sensitive topics (e.g. only Payment Service can publish to payment-events).
• Encryption in transit and at rest: All inter-service traffic and stored event logs should be encrypted, since events often carry sensitive business data as they flow across the network.
• PII minimization in events: Avoid putting sensitive personal data directly into widely-broadcast events; consider passing a reference ID and letting authorized consumers fetch sensitive details through a controlled, audited API instead.

When one user click quietly touches five services and a broker, “where did this break?” becomes a hard question without the right tooling.

When data flows through five services and a message broker, “where did this break?” becomes a genuinely hard question without the right tools.

• Correlation IDs: A unique ID generated at the very first request and passed through every subsequent API call and event, so you can search logs across every service and reconstruct the entire journey of one request.
• Distributed tracing: Tools like OpenTelemetry, Jaeger, and Zipkin visualize the full path of a request as it hops across services, showing exactly where time was spent and where it failed.
• Event lag monitoring: Track how far behind each consumer is from the latest event in the topic (“consumer lag”) — a growing lag is an early warning sign of trouble.
• Structured logging: Logs in JSON format with consistent fields (service name, correlation ID, event type) so they can be easily searched in tools like Elasticsearch or Splunk.
• Business-level dashboards: Beyond CPU and memory, track domain metrics like “orders placed per minute” or “average time from order to shipment,” which reveal problems technical metrics alone might miss.

Where these patterns actually live in a modern cloud environment.

Modern microservices data-sharing patterns are almost always deployed on containers orchestrated by Kubernetes, with managed cloud services handling the heavy infrastructure:

• Managed message brokers: AWS MSK / Amazon SQS+SNS, Google Pub/Sub, Azure Service Bus, or Confluent Cloud, so teams don’t have to operate Kafka clusters by hand.
• Service mesh: Tools like Istio or Linkerd handle mTLS, retries, and traffic routing between services transparently, without changing application code.
• Independent CI/CD pipelines: Each service has its own pipeline, so a Payment Service deploy never has to wait for Inventory Service’s tests to pass.
• Schema registries: Tools like Confluent Schema Registry enforce that event formats (Avro, Protobuf, JSON Schema) stay backward-compatible as services evolve, preventing a producer’s change from silently breaking consumers.

Where the mesh of services meets the messy world of actual storage.

21.1 Polyglot persistence

Because each service owns its own database, different services are free to pick the database engine that best fits their needs — this is called polyglot persistence. Order Service might use PostgreSQL for strong relational guarantees, Product Search might use Elasticsearch for fast text search, and a Recommendations service might use a graph database like Neo4j.

21.2 Caching read models

Data pulled from other services (via API or events) is often cached locally with a short time-to-live (TTL) using Redis or an in-memory cache, so repeated lookups don’t hit the network every time. This trades a small amount of freshness for a large amount of speed.

21.3 Load balancing

Synchronous API calls between services usually go through a load balancer or service discovery mechanism (like Kubernetes Services, Eureka, or Consul), spreading requests evenly across all healthy instances of the target service, and automatically routing around unhealthy ones.

A quick, side-by-side reference to the patterns worth reaching for — and the shortcuts worth actively avoiding.

The lessons that separate teams who have run this architecture for years from teams who are about to learn them the hard way.

23.1 Best practices

1. Default to async

   Default to asynchronous events for anything that doesn’t need an instant answer.

2. Design consumers to be idempotent

   Always design consumers to be idempotent — assume every event might be delivered more than once.

3. Always use the Outbox Pattern for save+publish

   Use the Outbox Pattern whenever a service both writes to its database and publishes an event in the same operation.

4. Version event schemas from day one

   Version your event schemas from day one, and keep changes backward-compatible.

5. Correlation IDs on everything

   Include a correlation ID on every request and event so you can trace a full journey end-to-end.

6. Prefer eventual consistency

   Prefer eventual consistency by default; only reach for synchronous strong consistency when the business truly cannot tolerate any staleness (e.g. checking a hard inventory limit at the exact moment of purchase).

23.2 Common mistakes

Concrete places where these patterns are running at massive scale right now — and a walkthrough that combines all of them.

24.1 Walking through a familiar example: online food delivery

Let’s tie everything together with one end-to-end story, similar to what a food delivery platform might do behind the scenes.

1. User taps “Place Order”

   You tap “Place Order” in the app. The Order Service synchronously calls the Restaurant Service to confirm the restaurant is currently open and accepting orders — this needs a fresh, real-time answer, so it’s a synchronous API call.

2. Order saves & publishes via Outbox

   Once confirmed, Order Service saves the order and, using the Outbox Pattern, reliably publishes an OrderPlaced event.

3. Payment consumes and charges

   The Payment Service consumes this event and charges the customer’s saved card, then publishes PaymentCompleted or PaymentFailed.

4. Saga fans out the next steps

   A Saga orchestrator (or a choreography chain) reacts: on success, it notifies the Restaurant Dashboard Service to start preparing food and the Driver Matching Service to find a nearby delivery partner; on failure, it cancels the order automatically.

5. Live map powered by CQRS

   As the driver’s location updates every few seconds, a stream of DriverLocationUpdated events flows through Kafka into a CQRS read model that powers the live map you see in the app — built purely from a fast-moving stream of events, not from synchronous polling of the Driver service’s database.

6. Analytics powered by CDC

   After delivery, an Analytics Service uses Change Data Capture on several services’ databases to build company-wide dashboards, without any of those services needing to change a single line of code to support analytics.

Notice how a single user action — placing one order — quietly touches almost every pattern covered in this tutorial: a synchronous check, a reliably published event, a saga with compensation, a live CQRS read model, and CDC-powered analytics. This is exactly what “production-grade” data sharing looks like in practice.

Short, honest answers to the questions engineers ask most when they first meet these patterns.

The whole tutorial, compressed into what actually matters.

• Microservices avoid a shared database to gain independent deployment, scaling, and technology choice — but this means data must be shared deliberately through APIs and events instead of SQL joins.
• Synchronous APIs answer “what is true right now,” at the cost of tight coupling and cascading failure risk.
• Asynchronous events decouple services and let many consumers react to one fact independently, at the cost of eventual (not instant) consistency.
• Sagas replace cross-database transactions with a sequence of local transactions plus compensating actions.
• CQRS pre-builds fast, combined read views from events, so queries never have to fan out live across services.
• Event Sourcing stores the full history of changes as the source of truth, giving perfect auditability.
• Change Data Capture turns a database’s own transaction log into a reliable event stream, even for legacy services.
• The Outbox Pattern is essential whenever a service both saves data and publishes an event, to avoid silently losing events.
• The CAP theorem explains why most of these patterns lean toward availability and eventual consistency rather than strict, instant consistency.
• Production-grade systems combine several of these patterns together, chosen per use case — there is no single universal answer.
